TUGAS PERTEMUAN 3

-


Membuat Konfigurasikan Legancy Inter-VLAN Routing

Oleh Rudiyanto (12180061)

TUGAS PERTEMUAN 3 (ADMINISTRASI JARINGAN - 12.5B.05)

  1. Buat Skema jaringan terdiri dari Router, Switch, dan 2 PC seperti pada gambar
  2. Buat Ip, Subnet mask, Default gateway

    Klik Deskop - Klik IP Configuration
    PC 0
    IP Address : 172.17.0.21
    Subnet Mask : 255.255.255.0
    Default Gateway : 172.17.0.1
    PC 1
    IP Address : 172.17.30.23
    Subnet Mask : 255.255.255.0
    Default Gateway : 172.17.30.1

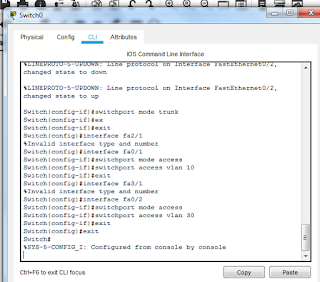

    Switch

    Switch>enable

    Switch#configure terminal

    Enter configuration commands, one per line. End with CNTL/Z.

    Switch(config)#vlan 10

    Switch(config-vlan)#name Sepuluh

    Switch(config-vlan)#vlan 30

    Switch(config-vlan)#name tigapuluh

    Switch(config-vlan)#exit

    Switch(config)#interface fa0/1

    Switch(config-if)#switchport mode trunk

    Switch(config-if)#exit

    Switch(config)#interface fa1/1

    Switch(config-if)#switchport mode trunk

    Switch(config-if)#exit

    Switch(config)#interface fa2/1

    Switch(config-if)#switchport mode access

    Switch(config-if)#switchport access vlan 10

    Switch(config-if)#exit

    Switch(config)#interface fa3/1

    Switch(config-if)#switchport mode access

    Switch(config-if)#switchport access vlan 30

    Switch(config-if)#exit

    Switch(config)#exit

    Switch#



    Router

    Router>enable

    Router#configure terminal

    Enter configuration commands, one per line. End with CNTL/Z.

    Router(config)#interface fa0/0.10

    Router(config-subif)#encapsulation dot1Q 10

    Router(config-subif)#ip add 172.17.0.1 255.255.255.0

    Router(config-subif)#exit

    Router(config)#interface fa1/0.30

    Router(config-subif)#encapsulation dot1Q 30

    Router(config-subif)#ip add 172.17.30.1 255.255.255.0

    Router(config-subif)#exit

    Router(config)#interface fa0/0

    Router(config-if)#no shut

    Router(config-if)#

    %LINK-5-CHANGED: Interface FastEthernet0/0, changed state to up

    %LINEPROTO-5-UPDOWN: Line protocol on Interface FastEthernet0/0, changed state to up

    %LINK-5-CHANGED: Interface FastEthernet0/0.10, changed state to up

    %LINEPROTO-5-UPDOWN: Line protocol on Interface FastEthernet0/0.10, changed state to up exit

    Router(config)#interface fa1/0

    Router(config-if)#no shut

    Router(config-if)#

    %LINK-5-CHANGED: Interface FastEthernet1/0, changed state to up

    %LINEPROTO-5-UPDOWN: Line protocol on Interface FastEthernet1/0, changed state to up

    %LINK-5-CHANGED: Interface FastEthernet1/0.30, changed state to up

    %LINEPROTO-5-UPDOWN: Line protocol on Interface FastEthernet1/0.30, changed state to up

    exit

    Router(config)#
